YACHT.Whendesignisthekey
Vedetta® low pressure water mist systems have been used already on many different yacht projects and each project is customized to meet customer’s requirement.
The nozzles and the rosette have a low-profile design minimizing the visual impact. The nozzles can be supplied with a broad range of colors in order to perfectly integrate with the sourrounding.

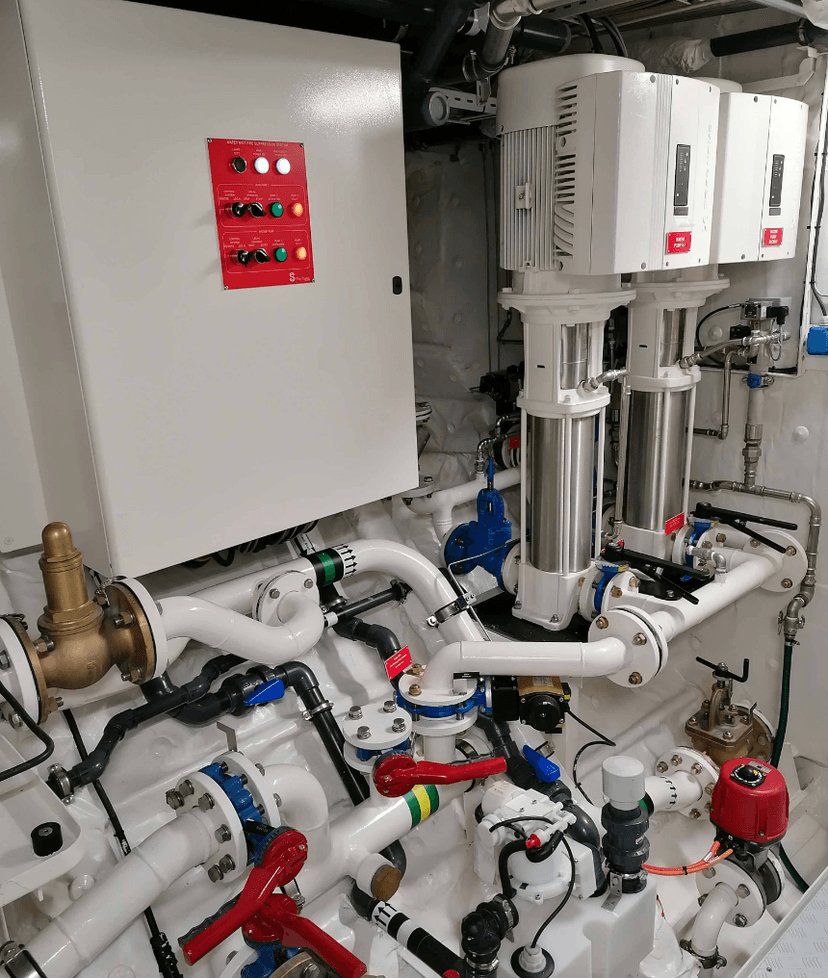

The main system components such as pumps, cabinets, pressure tanks etc. can be delivered in different colors as well.

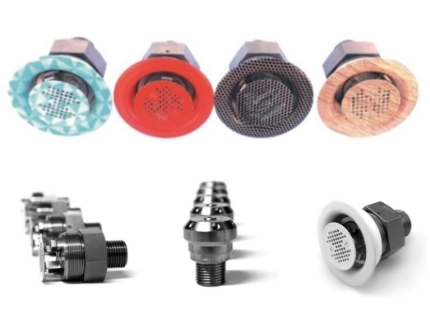

Nozzles
All watermist nozzles delivered with Vedetta systems hold MED-B, MER and DNV TA certificates. Such approval are recognized for all the major classification societies such as LRS, RINA, BV, ABS, etc. Machinery spaces nozzles hold already NATO number as they have been used already in navy projects.
The nozzles have a low-profile design minimizing the visual impact. The nozzles can be supplied with a broad range of colors in order to perfectly integrate with the sourrounding.
We include flexible hoses/valve for accommodation nozzles to ease installation and save maintenance time during replacement of nozzles.
ACOMPLETERANGEOFPROTECTION
Controlsystem
Vedetta® water mist systems are fully microprocessor controlled using a PLC for inputs and outputs. One or more touch screens or push buttons are used to operate the system. Each panel is a mirror image of all the other ones so that the complete system information is displayed on the screens at the same time.
On systems requiring emergency power supply, the main control cabinet is connected to a separate battery back-up unit supplying the PLC with 24 VDC at all times.
